This product is applied to: Inverter + Energy storage machine + Controller + Battery + Electric meter + Heat pump + Smart socket (load), etc. - MESH interconnection/real - time intelligent regulation and control

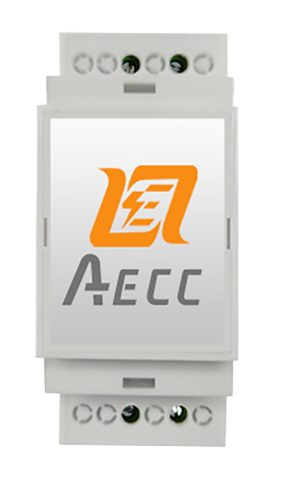

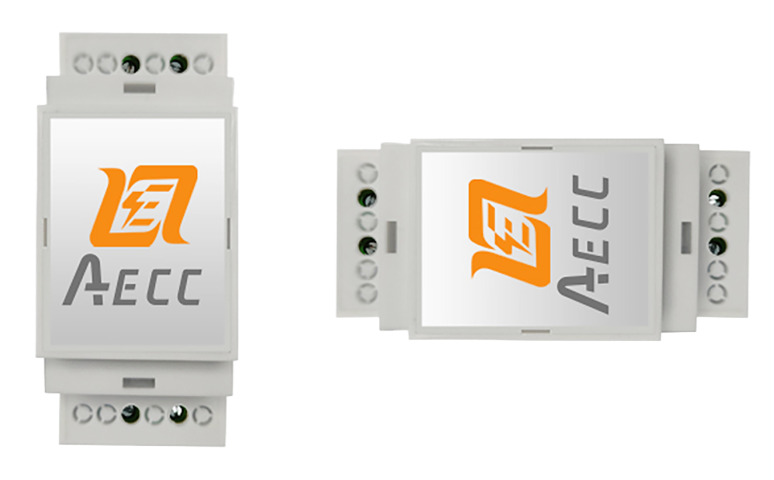

Contact NowThe Smart Electricity Meter - Rail Collector is a smart WiFi & LoRa rail-mounted three-phase CT electricity meter. It can access the cloud IoT platform wirelessly (via WiFi) through a router and has the capability of interconnection and intercommunication on the edge side of energy equipment, enabling it to be applied in household energy management scenarios.
The electricity meter supports functions such as remote control, remote upgrade, remote maintenance, and edge-side energy sharing of devices.
The main functions supported by the product include: support for Bluetooth seamless network configuration, support for WiFi internet access, support for LoRa communication, support for the TLS1.2 security protocol, support for HTTP local acquisition, support for the energy control cloud energy management platform, support for breakpoint OTA, support for European ETSI EN 303 645, and support for energy interconnection on the device's edge side.

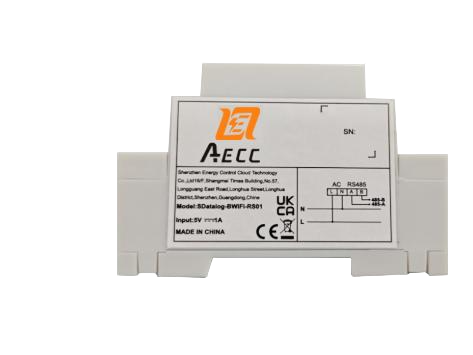

| Product Model | SDatalog-BWiFi-RS01 | ||||||||||
| General Parameter | |||||||||||
| Generic Metrics | |||||||||||
| Appearance(L/W/H) | (90*37*58mm) | ||||||||||
| Weight | 135g | ||||||||||
| Power Source | AC100~240V / Frequency 50/60Hz | ||||||||||
| Typical Power Consumption | >1.5W | ||||||||||
| Operating Temperature | -30℃ ～ +65℃ | ||||||||||
| Storage Temperature | -40℃ ～ +70℃ | ||||||||||
| Working Humidity | 5%-95% ，NO Condensating | ||||||||||
| Protection Level | IP20 | ||||||||||
| Installation | Guide Rail | ||||||||||
| Interface | |||||||||||
| RS485 | 1 way (industrial serial port) | ||||||||||
| Baud rate | 9600/115200bps | ||||||||||
| Application Parameter | |||||||||||
| Equipment Management | |||||||||||
| Number of Managed Devices | 1pcs | ||||||||||
| Communication Method | RS485 | ||||||||||
| Internet Access Method | WiFi | ||||||||||
| Energy Interconnection | |||||||||||
| Host/Slave | Support | ||||||||||
| Networking Mode | WLAN | ||||||||||
| Master-slave Networking | 8pcs | ||||||||||
| Slave | INV, Energy storage machines, Batteries, Charging piles, Smart meters, Smart sockets | ||||||||||
| Wireless Parameter | |||||||||||
| WiFi | |||||||||||
| Frequency Band | (2.4GHz)2400 ~ 2483.5MHz | ||||||||||
| Wireless System | 802.11b/g/n | ||||||||||
| Working Mode | client | ||||||||||
| Encryption Algorithm | Encryption mechanism：WPA/WPA2; Encipher：TKIP/CCMP/AES | ||||||||||
| Communication Distance | 30M | ||||||||||
| BLE | |||||||||||
| Version & Frequency Band | BLE4.2 and above，2.4GHz | ||||||||||
| Communication Distance | 10M | ||||||||||
| Certificate | |||||||||||
| RoHS、CE、UKCA | |||||||||||
Statement: The above values are measured in the internal laboratory of AECC under specific conditions. Actual values may vary due to differences in product, software version, environmental factors, and usage conditions. In case of any changes in product values, refer to the latest documentation.
